Task

Test Requirements

1. For every method that directly accesses a feature variable, there needs to be a test dynamically covering it.
   Remark: There need Not be a separate test for every such method.

2. For every feature variable there needs to be a test that dynamically covers that variable without explicitly setting its value in the test code.
   Remark: Do not set feature variable values unless absolutely required to satisfy some requirement.

3. The assertions in the test must both validate the functionality of the methods invoked in the test and checking enabled/disabled behaviors by feature variables accessed during the test execution.


Observations:

   *In addition to the source code, each system contains:
    - All needed libraries
    - An example of test
    - A list of methods which access each feature variable
    - All the feature variables have default feature values defined in the class called <SystemName>Variables.
      If you want to set another value for one of them, then you should do this in the test.
   *Set the feature variable values in the beginning of the test.
   *For the systems which use GUI, you should use a specific API for testing GUI called GUI Fest,
    here are some related links:
    - https://code.google.com/p/fest/
    - http://docs.codehaus.org/display/FEST/Getting+Started
    - http://www.javaworld.com/article/2077740/open-source-tools/test-driven-gui-development-with-fest.html
   *Make cohesive tests, i.e., avoid:
    - covering methods not related in the same test
    - making assertions not related in the same test

Example

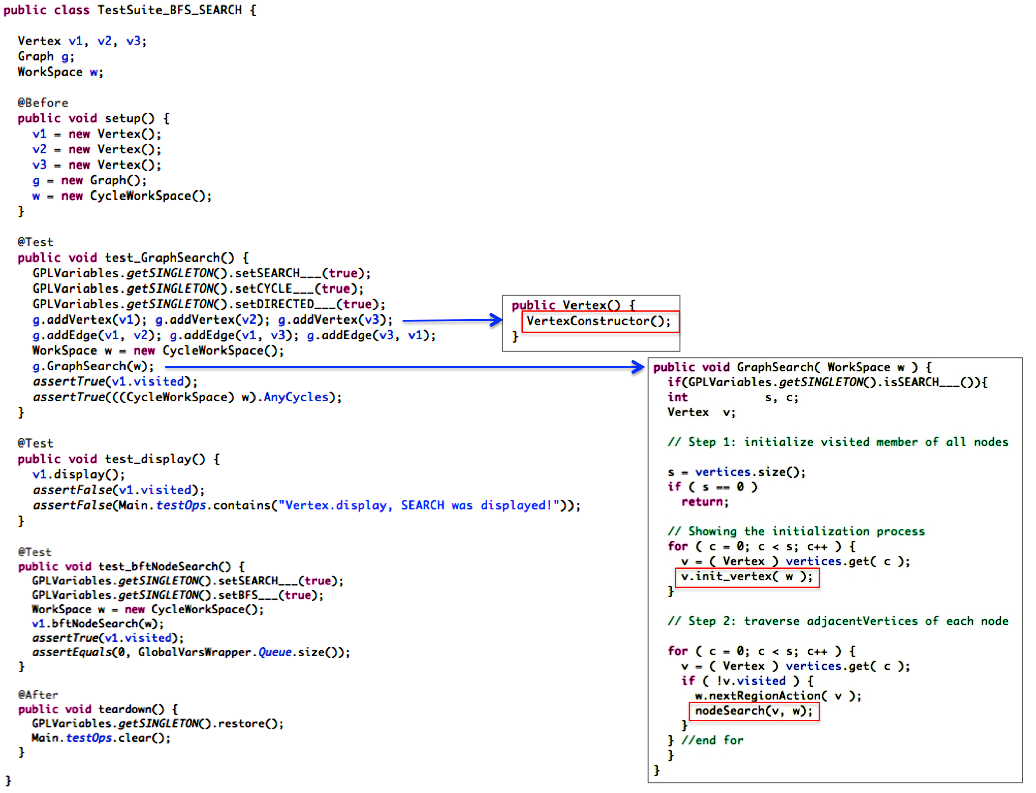

The following figure illustrates the test suite produced in order to cover the test requirements, considering feature variables BFS and SEARCH, for GPL.

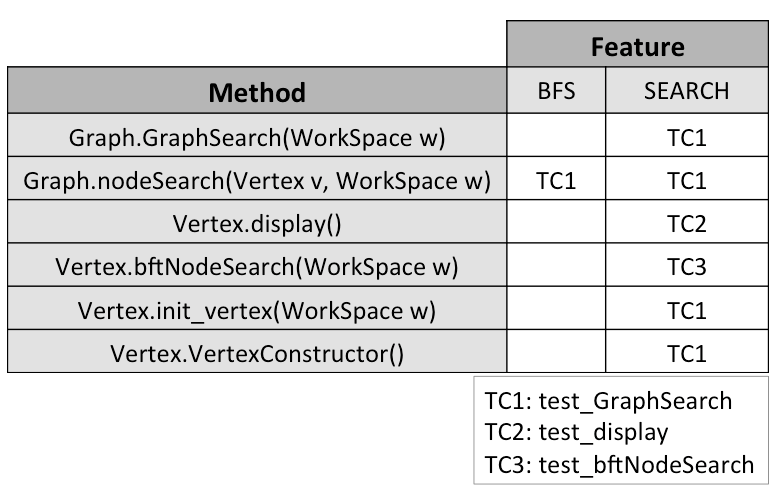

• Requirement 1: the test suite in the figure above has tests that cover the methods which access BFS and SEARCH feature variables. The following table shows a matrix of methods that access these two feature variables, and marks the tests which cover them. Thus, this requirement is covered, once there are tests that dynamically cover all the methods which access such features. Note that the test_GraphSearch dynamically covers the methods hilighted in red, see the figure above.

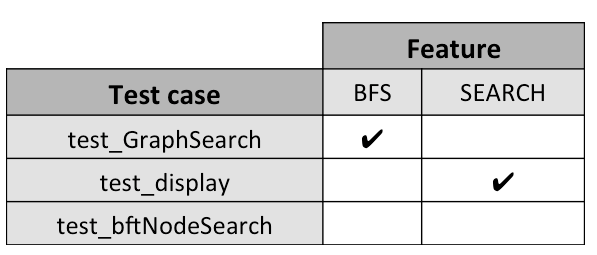

• Requirement 2: the following table shows a matrix of test cases that dynamically cover at least one occurrence of BFS and SEARCH feature variables without explicitly setting their values in the test code.

• Requirement 3: all the tests have assertions that check both the functionality of the methods and specific behaviors enabled by the feature variables covered by the methods. For instance this assertion "assertTrue(((CycleWorkSpace) w).AnyCycles);" checks the state o the variable AnyCycles (means that there is a cycle) which may change according to the value of BFS feature variable.

This test and the GPL source code are available at: GPL.zip
