Roles and Activities > Developer Role Set > Software Architect > Structure the Implementation Model

ATENÇÃO: esta atividade não necessitou de modificações!

Purpose
  • To establish the structure in which the implementation will reside.
  • To assign responsibilities for Implementation Subsystems and their contents.
Steps
Input Artifacts: Resulting Artifacts:
Role: Software Architect
Guidelines:
Workflow Details:


Create the initial implementation model structure To top of page

Purpose
  • To establish an initial structure for the Implementation Model.

In moving from the 'design space' to the 'implementation space' start by mirroring the structure of the Design Model in the Implementation Model.

Design Packages will have corresponding Implementation Subsystems, which will contain one or more components and all related files needed to implement the component. The mapping from the Design Model to the Implementation Model may change as each Implementation Subsystem is allocated to a specific layer in the architecture. Note that both classes and possibly design subsystems in the Design Model are mapped to components in the Implementation Model - although not necessarily one to one (see Concept: Mapping from Design to Code and Artifact: Design Subsystem).

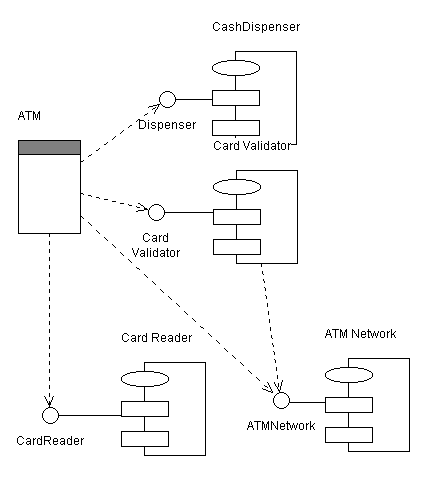

Create a Component Diagram to represent the Implementation Model Structure. A simple Component Diagram is shown below:

Example Component Diagram for a simple Automated Teller Machine

Adjust implementation subsystems To top of page

Purpose
  • Adapt the structure of the model to reflect team organization or implementation language constraints.

Decide whether the organization of subsystems needs to be changed, by addressing small tactical issues related to the implementation environment. Below are some examples of such tactical issues. Note that if you decide to change the organization of implementation subsystems you must also decide whether you should go back and update the design model, or the allow design model to differ from the implementation model.

  • Development team organization. The subsystem structure must allow several implementers or teams of implementers to proceed in parallel without too much overlap and agitation. It is recommended that each implementation subsystem be the responsibility of one and only one team. This means that you might want to split a subsystem in two (if it is large), and assign the two pieces to be implemented by two implementers or two teams of implementers,  particularly if the two implementers (or teams) have different build/release cycles.
  • Declarations of types. In implementation you may realize that a subsystem needs to import components from a another subsystem, because a type is declared in that subsystem. Typically, this occurs when you use typed programming languages, such as C++, Java and Ada. In this situation, and in general, it may be a good idea to extract type declarations into a separate subsystem.

Example

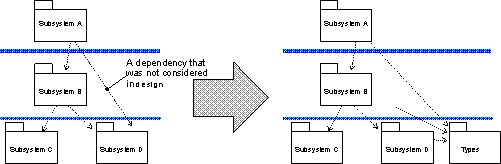

You extract some type declarations from Subsystem D, into a new subsystem Types, to make Subsystem A independent of changes to the public (visible) components in Subsystem D.

Type declarations are extracted from Subsystem D

.

  • Existing legacy code and component systems. You may need to incorporate legacy code, a library of reusable components, or off-the-shelf products. If these have not been modeled in design, then implementation subsystems must be added.

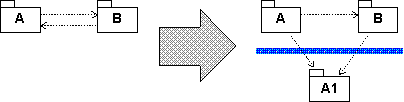

  • Adjust dependencies. Assume that a subsystem A and a subsystem B have import dependencies to each other. However, you may want to make B less dependent on changes in subsystem A. Extract the components of A that B imports and put in a new implementation subsystem A1 in a lower layer.

Components are extracted from subsystem A, and placed in a new subsystem A1.

Define imports for each implementation subsystem To top of page

Purpose
  • To define dependencies between subsystems.

For each subsystem, define which other subsystems it imports. This can be done for whole sets of subsystems, allowing all subsystems in one layer to import all subsystems in a lower layer. Generally, the dependencies in the Implementation Model will mirror those of the Design Model, except where the structure of the Implementation Model has been adjusted (see Adjust implementation subsystems).

Present the layered structure of subsystems in component diagrams.

Decide how to treat executables (and other derived objects) To top of page

Executables (and other derived objects) are the result of applying a build process to an implementation subsystem (or subsystems) or a part thereof, and so logically belong with the implementation subsystem. However, the software architect, working with the configuration manager, will need to decide the configuration item structure to be applied to the implementation model.

For ease of selection and reference, particularly for deployment, the default recommendation is to define separate configuration items to contain the sets of executables that are deployable. Thus, in the simple case, for each implementation subsystem there would be a configuration item for the deployable executables and a configuration item to contain the source etc. used to produce them. The implementation subsystem can be considered to be represented by a composite configuration item containing these configuration items (and perhaps others, such as test assets).

From a modeling point of view, a collection of executables produced by a build process can be represented as an Artifact: Build (which is a package) contained within the associated implementation subsystem (itself a package).

Decide how to treat test assets To top of page

Purpose
  • To add test artifacts to the Implementation Model.

In general, test components and test subsystems are not treated much differently in the Rational Unified Process from other developed software. However, test components and subsystems do not usually form part of the deployed system, and often are not deliverable to the customer. Therefore the default recommendation is to align the test assets with the target-of-test (e.g. component for unit test, implementation subsystem for integration test, system for system test) but keep the test assets in, for example, separate test directories, if the project repository is organized as a set or hierarchy of directories. Distinct test subsystems (intended for testing above the unit test level) should be treated in the same way as other implementation subsystems - as distinct configuration items.

For modeling, a collection of test components can be represented as an Artifact: Implementation Subsystem (a package). For unit test, such a test subsystem would normally be contained within the associated (tested) implementation subsystem. The software architect, in consultation with the configuration manager should decide whether test components at this level should be configured together with the components they test, or as separate configuration items. For integration and system test, the test subsystems may be peers of the implementation subsystems under test.

Update the implementation view To top of page

Purpose
  • To update the Implementation View of the Software Architecture Document.

The Implementation View is described in the "Implementation View" section of the Software Architecture Document. This section contains component diagrams that show the layers and the allocation of implementation subsystems to layers, as well as import dependencies between subsystems.

Evaluate the implementation model To top of page

See Checkpoints: Implementation Model
