piStar tool

An open-source, online goal modeling tool for i* 2.0. No installation required.

Start now »

See what's new in v2.1.0 »

iStar 2.0

Create i* 2.0 models with this free online modeling tool.

Learn more »

The iStar 2.0 Language Guide define constraints on which relationships (links) are valid. Whereas most of these constraints are enforced on the piStar tool, preventing the creation of invalid models, some of them have been ignored:

  • The tool allows the creation of cyclic links when more than two elements are involved
  • The tool allows the creation of and-refinements with a single child

Custom properties

Do you need to know cost, rationale, priority, <insert your need here>? Don't sweat it, add any property you want to your elements.

No installation

The piStar tool runs on your browser, no installation is required. Works best on Chrome. Once it's open it can be used offline.

Smooth links

Add vertices to customize your links.


Automatic resizing of actors to fit your content.

Collapsable actors

(Un)collapse actors with a simple alt+click, enabling you to have both SD and SR diagrams in a single model.

Error explanation

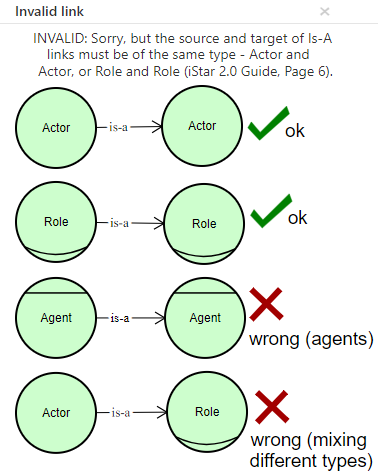

Visual aids help users learning the i* syntax.

Export to SVG and PNG

Create high quality images from your models, ready to be used on journal papers, books, posters and presentations.

Full screen

To make the most of the tool, use the Fullscreen toggle that you can find in the Options menu.


This modeling tool runs entirely on your browser. Not a single piece of your models are sent to our servers.

This page here has no cookies. However, by accessing the actual tool, the Google Analytics service will be activated with the Anonymize IP option active and Marketing features deactivated. This way we can still learn about the usage of the tool while preventing Google from recording any personal data.

From within the tool, you can setup your privacy settings and turn off any data collection.


The following open-source libraries and frameworks made it possible:

  • JointJS - provides the core modeling functionalities
  • Bootstrap - professional-looking style and components
  • jQuery - facilitates DOM manipulation and cross-browser support
  • X-editable - enables inline editing of DOM elements
  • Bootbox - for uniformed cross-browser dialogs

Non-english text

Support for editing, saving and loading models with non-english symbols.

Diagram with text in different languages

Open source

Improve it, extend it, fork it, do as you please! Here's our license.

Open repository »


Version 2.1.0 released with the first external contribution

This is the first release of the piStar Tool that features an external contribution! It came from our colleagues at the Beijing University of Technology, who developed an auto-layout feature. Thank you Qixiang Zhou, Yunduo Wang, and Tong Li!

And you? Would you like to contribute as well? Perhaps it's just something that you find annoying in the tool, or perhaps it's a text in the UI that you think is a little off... pull requests are more than welcome! All contributors are added to our Contributors file .

New features in v2.1.0

  • Auto-layout - This feature automatically organizes the model in a way that prevents overlaps between actors. It's very useful when you need to create SD (Strategic Dependencies) views, by saving you from the tedious task of reorganizing the layout of your collapsed actors.

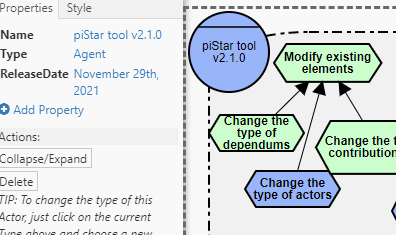

  • Swap actor type - "Is this just an actor, or is it a role?" No need to sweat it, now you can change this at any time.
  • Undo delete - This is, by far, the most requested feature in the history of the piStar Tool. And it's finally here! This first version of the feature only undoes deletions, aiming to prevent data loss due to accidental deletes. I'll rely on your feedback in order to improve it in future releases, so give it a try and then give us a shout.

Changes in v2.1.0

A couple of tweaks in the UI will hopefully prevent some accidental deletions. The first one is that users are now prompted to confirm when they are deleting actors. Since actors may contain multiple elements, accidentally deleting them can be quite frustrating.

The second tweak is related to the interaction with links. When a user clicks in the highlight of a link, it is selected. However, when clicking in the actual line of the link, the tool only added a vertex to the link but didn't actually select it. Thus, sometimes users assumed that the link was selected but it wasn't, then they hit the Delete key and something else was (accidentally) deleted. Well, in this new version, when a vertex is added the link is also selected.

Those are only the highlights of version 2.1.0. For more details, check out the full changelog.

Version 2.0.0 released!

A new version of the tool is available! This is our biggest update yet, with a revamped UI, improved validity checks, and enhanced model aesthetics, as well as a host of new features.

Please let us know if you find any bug or simply send us your feedback.


  • Resize elements. Double-click the resizing handle to restore to default size.

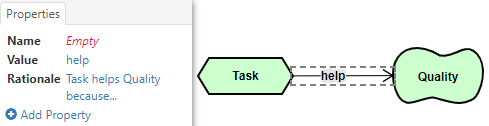

  • Add custom properties to links

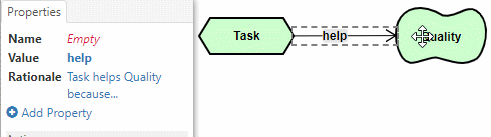

  • Swap labels (values) in contribution links

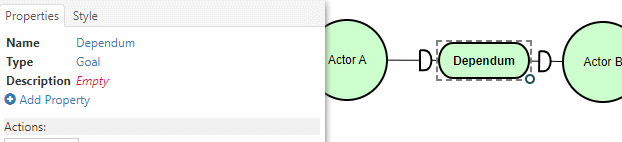

  • Swap dependency type in dependency links
  • Flip dependency direction in dependency links
  • Change the color of elements
  • Add custom properties to the diagram as a whole (e.g., project name, authors)
  • Fullscreen toggle
  • Improved compatibility with Mac OS

Aesthetic changes

Compare below the visual changes from version 1.2 to 2.0.

Improved Validity Checks

Two iStar 2.0 constraints that were not enforced in previous verstions of the tool are now enforced:

  • A single element can be AND-refined or OR-refined, but not both;
  • For a dependency, if a depender element x exists, then x cannot be refined or contributed to.

The following constraints are still ignored:

  • There should be no cyclic links;
  • AND-refinement relations must contain at least two children.

Users are still able to load models from previous versions that have invalid links, but they receive a notification suggesting to fix such links.

Moreover, the error messages when trying to create an invalid link are now clearer.

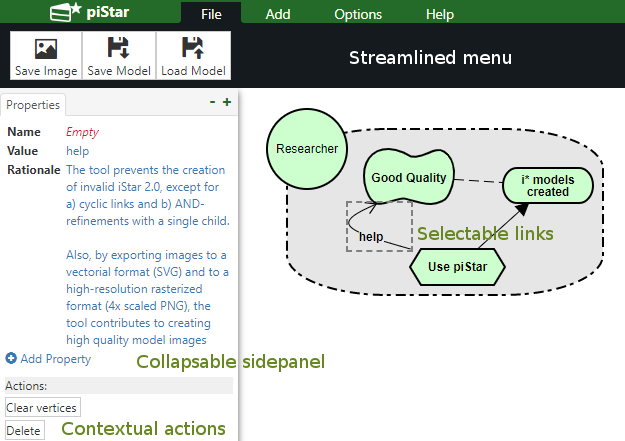

Improved User Interface

A new User Interface (see below) has been designed not only to address some of the previous usability issues, but also to provide space for new and future functionalities.

Those are the highlights of this new version. For more details, check out the changelog.

Version 1.2.0 - it grows!

Version 1.2.0 is now available: now the space for drawing depends on your window's size, thus it's likely that your modeling will get comfy! Oh no, there is no more room for your model!? Don't worry, now the modeling area will increase automatically to the left and to the right as needed.

Those are the new features, but there's some enhancements and bug fixes as well. Check out the changelog.

By the way, we are out of known bugs! Help us, find them and shout out (pretty please?)!

Version 1.1.0 - complete saving

Version 1.1.0 is now available! and you are finally able to restore your models exactly as they were: what was collapsed remains collapsed, and links' vertices are also kept intact.

Non-english speaking modelers (including myself) are now able to save and load models containing non-english symbols. The tested languages are: Arabic, Chinese, Japanese, Portuguese, Russian, and Turkish.

Those are the new features, but there's also a whole lot of enhancements and bug fixes. Check out the changelog.

What about Privacy?

We are adding (back) Google Analytics tracking, now with Anonymous IP. What do you think of it? Is it a deal breaker? Do you have suggestions on the topic?

Version 1.0.1 released

A new version of piStar is online, with small but useful adjustments. Check out the changelog.

Now with this landing page

This landing page here was created and published, aiming to make the piStar tool more accessible.
