Disciplines > Configuration & Change Management > Concepts > Product Directory Structure

The Product Directory Structure serves as a logically nested placeholder for all versionable product-related artifacts. Artifacts are produced as result of the following development process lifecycle and for the development of each constituent part (component) of the overall system.

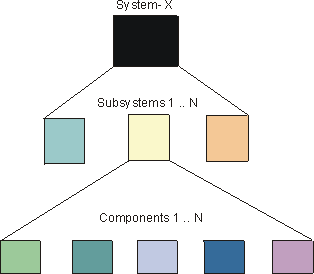

The following figure shows that System-X consists of "N" subsystems and each subsystem consists of "N" components. The Product Directory Structure provides a common placeholder for the various artifacts that are required for the development of each part of the overall system.

Topics

In the Rational Unified Process artifacts are grouped and described in terms of information sets. The information sets are:

Projects could organize artifacts by information set, however, that would not take into account how the overall system is to be developed and then assembled from its constituent parts. The Product Directory Structure is logically structured to show how components are nested and has the essential information required to create them in an overall context of a system or subsystem.

The Product Directory Structure is a placeholder framework and provides a navigational map to all project-related artifacts. The artifacts could be physically placed within the various directories or they could be referenced from given locations.

System Product Directory Structure To top of page

Although an experienced software architect may have a good idea of system composition at the outset, the view of major developmental components emerges as a result of Analysis & Design-related activities to define and refine candidate architectures.

The following table provides a Product System Directory Structure pattern that could be used as a "Product Directory Structure" in the initial phases of project development whereas the precise details of composite subsystems and architectural layering has yet to be determined.

System Level Product Directory Structure

System Requirements

Models

Use Case Model Use Case Package
User Interface Prototype
Database Requirements Attributes
Documents Vision
Glossary
Stakeholder Requests
Supplementary Specifications
Software Requirement Specs

Reports

Use-Case Model Survey
Use-Case Report
System Design and Implementation Models Analysis Model Use Case Realization
Design Model Design Subsystem
Interface
Test Package
Data Model
Workload Analysis Document
Documents Software Architecture Document
Design Model Survey
Subsystem-1 Subsystem Directory Structure
Subsystem-N Subsystem Directory Structure
System Integration Plans Integration Build Plan
Libraries
System Test Test Plan Test Suites
Test Cases Test Scripts
Test Data
Test Results
System Deployment Deployment Plan
Documents Release Notes
Manuals End User Support Material
Training Materials
Installation Artifacts
System Management Plans Software Development Plan
Iteration Plan Requirements Management Plan
Risk List Risk Management Plan
Development Case Infrastructure Plan
Product Acceptance Plan Configuration Management Plan

Documentation Plan

QA Plan

Problem Resolution Plan Subcontractor Management Plan
Process Improvement Plan Measurement Plan
Assessments Iteration Assessment
Development Organization Assessment
Status Assessment
Tools Development Environment Tools

Editors

Compilers
Configuration Management Tools Rational ClearCase
Requirements Management Tools Rational RequisitePro
Visual Modeling Tools Rational Rose
Test Tools Rational Test Factory
Defect Tracking Rational ClearQuest
Standards and Guidelines Requirements Requirements Attributes
Use Case Modeling Guidelines
User Interface
Design Design Guidelines
Implementation Programming Guidelines
Documentation Manual Styleguide

Once Analysis & Design activities are underway, and there is an improved understanding about the number and nature of subsystems required in the overall system (Activity: Subsystem Design), the Product Directory Structure needs to be expanded to accommodate each subsystem.

The information in the System Product Directory Structure needs to be visible to all subsystems across the project. So apart from the product management, requirements and test information Standards and Guidelines would belong in the System Product Directory Structure. In this instance, Tools are included in the System Product Directory Structure, however, they could be in a higher level directory where a number of Systems could be using the same toolset.

Subsystem Directory Structure To top of page

The information in the Product Subsystem Directory Structure relates directly to the development of that particular subsystem. The number of 'instantiations' of the Subsystems Product Directory Structure is clearly related to number of subsystems decided upon as a result of the Analysis&Design activities.

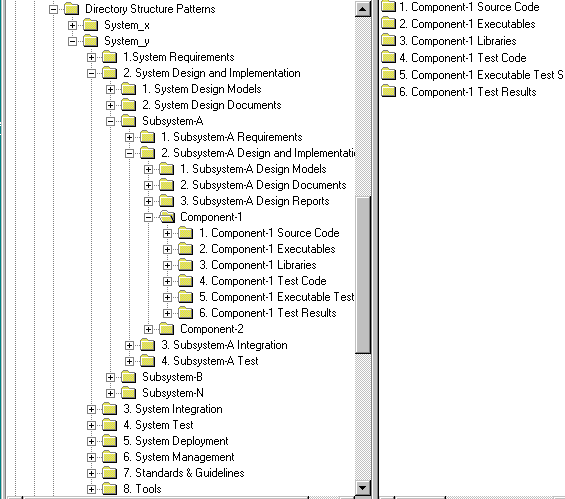

As shown in the following figure (Drilling to the Executables), System-y has three subsystems (Subsystem-A, Subsystem-B and Subsystem-N). Each subsystem has the necessary information for its design and, eventual, implementation.

Drilling to the Executables

A generalized breakdown of the Subsystem Product Directory Structure is as follows:

Subsystem Level Product Directory Structure

Subsystem-N Requirements

Models

Use Case Model Use Case Package
Use Case Storyboard
Use Case (text)
User Interface Prototype
Database Requirements Attributes
Documents Vision
Glossary
Stakeholder Requests
Supplementary Specifications
Software Requirement Specs

Reports

Use-Case Model Survey
Use-Case Report
Subsystem-N Design and Implementation Models Analysis Model Use Case Realization
Subsystem Design Model Design Packages
Interface Packages
Test Packages
Implementation Model
Data Model
Workload Model
Documents Software Architecture Document
Design Model Survey

Reports

Use-Case Realization Report

Component-1

Component-1 Directory

Component-N

Component-N Directory
Subsystem-N Integration Plans Subsystem Integration Build Plan
Libraries
Subsystem-N Test Test Plan Test Suites
Test Cases Test Scripts
Test Results
Test Data

Component Directory Structure To top of page

The number of components is a result of subsystem design decisions. The following directory structure needs to be instantiated for each component to be developed.

Component Level Directory Structure
Component

Source Code

Object/Executable Code
Interfaces
Test Code
Executable Test Scripts
Test Data
Test Results

One benefit of nesting directories in the prescribed manner is that all relevant contextual information on the development of a component is available, either at the same level, or the level above.

This type of logical nesting gives rise to the setting up of development and integration workspaces that can linked to the overall development team structure.

The naming convention for artifacts is described in Activity: Establish CM Policies at step Define Configuration Identification Practices
