Purpose To top of page

The purpose of this workflow detail is to:

  • Provide the natural transition from analysis activities to design activities, identifying:
    • appropriate design elements from analysis elements
    • appropriate design mechanisms from related analysis mechanisms
  • Maintain the consistency and integrity of the architecture, ensuring that:
    • new design elements identified for the current iteration are integrated with pre-existing design elements.
    • maximal re-use of available components and design elements is achieved as early as possible in the design effort.
  • Describe the organization of the system's run-time and deployment architecture
  • Organize the implementation model so as to make the transition between design and implementation seamless

How to Staff To top of page

These activities are best carried out by a small team staffed by cross-functional team members. Issues that are typically architecturally significant include performance, scaling, process and thread synchronization, and distribution. The team should also include members with domain experience who can identify key abstractions. The team should also have experience with model organization and layering. The team will need to be able to pull all these disparate threads into a cohesive, coherent (albeit preliminary) architecture.

Because the focus of the architecture effort is shifting toward implementation issues, greater attention needs to be paid to specific technology issues. This will force the architecture team to shift members or expand to include people with distribution and deployment expertise (if those issues are architecturally significant). In order to understand the potential impact of the structure on the implementation model on the ease of integration, expertise in the software build management process is useful to have.

At the same time, it is essential that the architecture team not be composed of a large extended team. A strategy for countering this trend is to retain a relatively small core team with a satellite group of extended team members that are brought in as "consultants" on key issues. This structure also works well for smaller projects where specific expertise may be borrowed or contracted from other organizations; they can be brought in as specific issues need to be addressed.

Work Guidelines To top of page

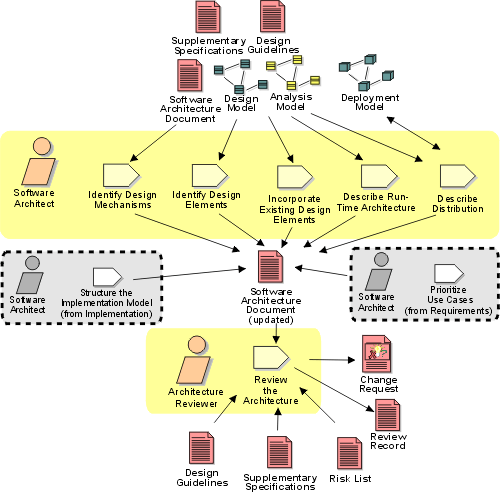

The work is best done in several sessions, perhaps performed over a few days (or weeks and months for very large systems). The initial focus will be on the activities Identify Design Mechanisms and Identify Design Elements, with a great deal of iteration with the Incorporate Existing Design Elements activity to make sure that new elements do not duplicate functionality of existing elements.

As the design emerges, concurrency and distribution issues are introduced in the activities Describe the Run-time Architecture and Describe Distribution, respectively. As these issues are considered, changes to design elements may be required to split behavior across processes, threads or nodes.
