Dependency

An import dependency in the design model is a stereotyped dependency whose source is a design package and whose target is a different design package. The import dependency allows the public contents of the target package to be referenced in the source package.
Topics

Explanation To top of page

Handling import dependencies between packages is an important aspect of structuring an object model. A package depends on another if any of its classes have relationships that are navigable to classes in the other package. To express such dependencies you use the import dependency from one package to the package on which it depends.

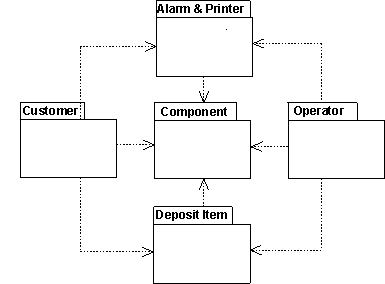

Dependencies between packages are expressed by import dependencies.

Use To top of page

You evolve import dependencies in the following manner:

  • Before you start working with the object model, make outlines of dependencies for use as guidelines during the work.
  • When the model is completed, use it to show the dependencies actually there. This entails updating the import dependencies in the object model.
  • If you divided the model into packages early on, use the import dependencies to show where dependencies are allowed.
  • How packages depend on one another affects a system's tolerance to change. An object model will be easier to change if you:
  • Reference a minimum number of contained classes from outside each package. If you reference many classes, the package may have too many different responsibilities and should be divided into two.
  • Make each package depend on few other packages.
  • Test each package separately. This means that you should be able to test a package by simulating the package on which it depends. You should not require other packages to be completely or almost completely implemented. If you can test a package separately, system development and maintenance for each package will be easier.
  • Place general parts of the object model in separate packages on which other packages depend. If there is such a package, pay strict attention to release handling, since several parts of the system may be affected by changes to the package.

Example

Suppose you find something in common for the classes Customer Panel and Operator Panel in the recycling machine. You assign these general services to a new class, Panel that you place in a new package, Panels. The other two classes may then refer to this class to use the general services. Because the classes belong to two separate packages, the two packages will depend on the new package. This elimination of redundancy implies that changes to the common functionality only needs to be done in one place.
