Purpose
  • To plan the order in which the components contained in an implementation subsystem should be integrated.
Steps
Input Artifacts: Resulting Artifacts:
Role: Integrator

Workflow Details:

The primary input is the integration build plan that specifies what should be delivered to system integration and when.

Define the Builds To top of page

Study the use cases and scenarios that have been selected for the current iteration. Select one, or several scenarios, that will be the goal for each increment of the integration. It may be necessary to select only a part of a scenario that concerns this subsystem.

Capture the plan to integrate the subsystem, either in the project's Integration Build Plan, or in an integration build plan local to the subsystem.

Identify the Classes To top of page

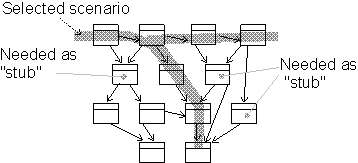

Identify the classes that participate in the selected scenarios. Each scenario is described in a use-case realization's sequence diagrams, collaboration diagrams, or class diagrams. Identify which classes you need to implement, and which classes have already been implemented. Also identify the classes that do not participate in the scenario, but are needed as stubs.

Classes are identified from use-case realizations.

Update the Subsystem's Imports To top of page

Identify which other implementation subsystems are needed for this build. Decide which version of each subsystem to use. Update import dependencies for this subsystem to the correct versions of the other subsystems.

If new system baselines have recently been promoted, the integrator will also have to decide when to update (rebaseline) the subsystem integration workspace. This decision is based on where in the development cycle you are. If your subsystem development is unstable in some critical area, then you may decide to postpone rebaselining.

When it is late in the project, and close to a release (whether internal or external), it is crucial that subsystems have consistent import sets. Then there is a greater urgency to stay current with the system baselines.
