Production Aspects

A Bean Aspect

(The code for this example is in InstallDir/examples/bean.)

This example examines an aspect that makes Point objects into a Java beans with bound properties.

Introduction

Java beans are reusable software components that can be visually manipulated in a builder tool. The requirements for an object to be a bean are few. Beans must define a no-argument constructor and must be either Serializable or Externalizable. Any properties of the object that are to be treated as bean properties should be indicated by the presence of appropriate get and set methods whose names are getproperty and set property where property is the name of a field in the bean class. Some bean properties, known as bound properties, fire events whenever their values change so that any registered listeners (such as, other beans) will be informed of those changes. Making a bound property involves keeping a list of registered listeners, and creating and dispatching event objects in methods that change the property values, such as setproperty methods.

Point is a simple class representing points with rectangular coordinates. Point does not know anything about being a bean: there are set methods for x and y but they do not fire events, and the class is not serializable. Bound is an aspect that makes Point a serializable class and makes its get and set methods support the bound property protocol.

The Class Point

The class Point is a very simple class with trivial getters and setters, and a simple vector offset method.

class Point {

  protected int x = 0;
  protected int y = 0;

  public int getX() {
    return x;
  }

  public int getY() {
    return y;
  }

  public void setRectangular(int newX, int newY) {
    setX(newX);
    setY(newY);
  }

  public void setX(int newX) {
    x = newX;
  }

  public void setY(int newY) {
    y = newY;
  }

  public void offset(int deltaX, int deltaY) {
    setRectangular(x + deltaX, y + deltaY);
  }

  public String toString() {
    return "(" + getX() + ", " + getY() + ")" ;
  }
}

The Aspect BoundPoint

The aspect BoundPoint adds "beanness" to Point objects. The first thing it does is privately introduce a reference to an instance of PropertyChangeSupport into all Point objects. The property change support object must be constructed with a reference to the bean for which it is providing support, so it is initialized by passing it this, an instance of Point. The support field is privately introduced, so only the code in the aspect can refer to it.

Methods for registering and managing listeners for property change events are introduced into Point by the introductions. These methods delegate the work to the property change support object.

The introduction also makes Point implement the Serializable interface. Implementing Serializable does not require any methods to be implemented. Serialization for Point objects is provided by the default serialization method.

The pointcut setters names the set methods: reception by a Point object of any method whose name begins with 'set' and takes one parameter. The around advice on setters() stores the values of the X and Y properties, calls the original set method and then fires the appropriate property change event according to which set method was called. Note that the call to the method proceed needs to pass along the Point p. The rule of thumb is that context that an around advice exposes must be passed forward to continue.

aspect BoundPoint {
  private PropertyChangeSupport Point.support = new PropertyChangeSupport(this);

  public void Point.addPropertyChangeListener(PropertyChangeListener listener){
    support.addPropertyChangeListener(listener);
  }

  public void Point.addPropertyChangeListener(String propertyName,
                                              PropertyChangeListener listener){

    support.addPropertyChangeListener(propertyName, listener);
  }

  public void Point.removePropertyChangeListener(String propertyName,
                                                 PropertyChangeListener listener) {
    support.removePropertyChangeListener(propertyName, listener);
  }

  public void Point.removePropertyChangeListener(PropertyChangeListener listener) {
    support.removePropertyChangeListener(listener);
  }

  public void Point.hasListeners(String propertyName) {
    support.hasListeners(propertyName);
  }

  declare parents: Point implements Serializable;

  pointcut setter(Point p): call(void Point.set*(*)) && target(p);

  void around(Point p): setter(p) {
        String propertyName =
      thisJoinPointStaticPart.getSignature().getName().substring("set".length());
        int oldX = p.getX();
        int oldY = p.getY();
        proceed(p);
        if (propertyName.equals("X")){
      firePropertyChange(p, propertyName, oldX, p.getX());
        } else {
      firePropertyChange(p, propertyName, oldY, p.getY());
        }
  }

  void firePropertyChange(Point p,
                          String property,
                          double oldval,
                          double newval) {
        p.support.firePropertyChange(property,
                                 new Double(oldval),
                                 new Double(newval));
  }
}

The Test Program

The test program registers itself as a property change listener to a Point object that it creates and then performs simple manipulation of that point: calling its set methods and the offset method. Then it serializes the point and writes it to a file and then reads it back. The result of saving and restoring the point is that a new point is created.

  class Demo implements PropertyChangeListener {

    static final String fileName = "test.tmp";

    public void propertyChange(PropertyChangeEvent e){
      System.out.println("Property " + e.getPropertyName() + " changed from " +
         e.getOldValue() + " to " + e.getNewValue() );
    }

    public static void main(String[] args){
      Point p1 = new Point();
      p1.addPropertyChangeListener(new Demo());
      System.out.println("p1 =" + p1);
      p1.setRectangular(5,2);
      System.out.println("p1 =" + p1);
      p1.setX( 6 );
      p1.setY( 3 );
      System.out.println("p1 =" + p1);
      p1.offset(6,4);
      System.out.println("p1 =" + p1);
      save(p1, fileName);
      Point p2 = (Point) restore(fileName);
      System.out.println("Had: " + p1);
      System.out.println("Got: " + p2);
      }
    ...
  }

Compiling and Running the Example

To compile and run this example, go to the examples directory and type:

ajc -argfile bean/files.lst
java bean.Demo

The Subject/Observer Protocol

(The code for this example is in InstallDir/examples/observer.)

This demo illustrates how the Subject/Observer design pattern can be coded with aspects.

Overview

The demo consists of the following: A colored label is a renderable object that has a color that cycles through a set of colors, and a number that records the number of cycles it has been through. A button is an action item that records when it is clicked.

With these two kinds of objects, we can build up a Subject/Observer relationship in which colored labels observe the clicks of buttons; that is, where colored labels are the observers and buttons are the subjects.

The demo is designed and implemented using the Subject/Observer design pattern. The remainder of this example explains the classes and aspects of this demo, and tells you how to run it.

Generic Components

The generic parts of the protocol are the interfaces Subject and Observer, and the abstract aspect SubjectObserverProtocol. The Subject interface is simple, containing methods to add, remove, and view Observer objects, and a method for getting data about state changes:

    interface Subject {
      void addObserver(Observer obs);
      void removeObserver(Observer obs);
      Vector getObservers();
      Object getData();
  }

The Observer interface is just as simple, with methods to set and get Subject objects, and a method to call when the subject gets updated.

  interface Observer {
      void setSubject(Subject s);
      Subject getSubject();
      void update();
  }

The SubjectObserverProtocol aspect contains within it all of the generic parts of the protocol, namely, how to fire the Observer objects' update methods when some state changes in a subject.

  abstract aspect SubjectObserverProtocol {

      abstract pointcut stateChanges(Subject s);

      after(Subject s): stateChanges(s) {
          for (int i = 0; i < s.getObservers().size(); i++) {
              ((Observer)s.getObservers().elementAt(i)).update();
          }
      }

      private Vector Subject.observers = new Vector();
      public void   Subject.addObserver(Observer obs) {
          observers.addElement(obs);
          obs.setSubject(this);
      }
      public void   Subject.removeObserver(Observer obs) {
          observers.removeElement(obs);
          obs.setSubject(null);
      }
      public Vector Subject.getObservers() { return observers; }

      private Subject Observer.subject = null;
      public void     Observer.setSubject(Subject s) { subject = s; }
      public Subject  Observer.getSubject() { return subject; }

  }

Note that this aspect does three things. It define an abstract pointcut that extending aspects can override. It defines advice that should run after the join points of the pointcut. And it introduces state and behavior onto the Subject and Observer interfaces.

Application Classes

Button objects extend java.awt.Button, and all they do is make sure the void click() method is called whenever a button is clicked.

  class Button extends java.awt.Button {

      static final Color  defaultBackgroundColor = Color.gray;
      static final Color  defaultForegroundColor = Color.black;
      static final String defaultText = "cycle color";

      Button(Display display) {
          super();
          setLabel(defaultText);
          setBackground(defaultBackgroundColor);
          setForeground(defaultForegroundColor);
          addActionListener(new ActionListener() {
                  public void actionPerformed(ActionEvent e) {
                      Button.this.click();
                  }
              });
          display.addToFrame(this);
      }

      public void click() {}

  }

Note that this class knows nothing about being a Subject.

ColorLabel objects are labels that support the void colorCycle() method. Again, they know nothing about being an observer.

  class ColorLabel extends Label {

      ColorLabel(Display display) {
          super();
          display.addToFrame(this);
      }

      final static Color[] colors = {Color.red, Color.blue,
                                     Color.green, Color.magenta};
      private int colorIndex = 0;
      private int cycleCount = 0;
      void colorCycle() {
          cycleCount++;
          colorIndex = (colorIndex + 1) % colors.length;
          setBackground(colors[colorIndex]);
          setText("" + cycleCount);
      }
  }

Finally, the SubjectObserverProtocolImpl implements the subject/observer protocol, with Button objects as subjects and ColorLabel objects as observers:

package observer;

import java.util.Vector;

aspect SubjectObserverProtocolImpl extends SubjectObserverProtocol {

    declare parents: Button implements Subject;
    public Object Button.getData() { return this; }

    declare parents: ColorLabel implements Observer;
    public void    ColorLabel.update() {
        colorCycle();
    }

    pointcut stateChanges(Subject s):
        target(s) &&
        call(void Button.click());

}

It does this by introducing the appropriate interfaces onto the Button and ColorLabel classes, making sure the methods required by the interfaces are implemented, and providing a definition for the stateChanges pointcut. Now, every time a Button is clicked, all ColorLabel objects observing that button will colorCycle.

Compiling and Running

Demo is the top class that starts this demo. It instantiates a two buttons and three observers and links them together as subjects and observers. So to run the demo, go to the examples directory and type:

  ajc -argfile observer/files.lst
  java observer.Demo

A Simple Telecom Simulation

(The code for this example is in InstallDir/examples/telecom.)

This example illustrates some ways that dependent concerns can be encoded with aspects. It uses an example system comprising a simple model of telephone connections to which timing and billing features are added using aspects, where the billing feature depends upon the timing feature.

The Application

The example application is a simple simulation of a telephony system in which customers make, accept, merge and hang-up both local and long distance calls. The application architecture is in three layers.

  • The basic objects provide basic functionality to simulate customers, calls and connections (regular calls have one connection, conference calls have more than one).

  • The timing feature is concerned with timing the connections and keeping the total connection time per customer. Aspects are used to add a timer to each connection and to manage the total time per customer.

  • The billing feature is concerned with charging customers for the calls they make. Aspects are used to calculate a charge per connection and, upon termination of a connection, to add the charge to the appropriate customer's bill. The billing aspect builds upon the timing aspect: it uses a pointcut defined in Timing and it uses the timers that are associated with connections.

The simulation of system has three configurations: basic, timing and billing. Programs for the three configurations are in classes BasicSimulation, TimingSimulation and BillingSimulation. These share a common superclass AbstractSimulation, which defines the method run with the simulation itself and the method wait used to simulate elapsed time.

The Basic Objects

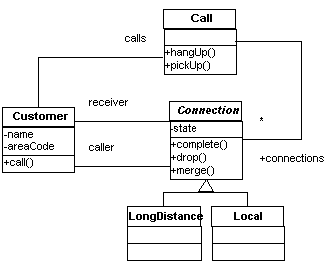

The telecom simulation comprises the classes Customer, Call and the abstract class Connection with its two concrete subclasses Local and LongDistance. Customers have a name and a numeric area code. They also have methods for managing calls. Simple calls are made between one customer (the caller) and another (the receiver), a Connection object is used to connect them. Conference calls between more than two customers will involve more than one connection. A customer may be involved in many calls at one time.

The Class Customer

Customer has methods call, pickup, hangup and merge for managing calls.

public class Customer {

      private String name;
      private int areacode;
      private Vector calls = new Vector();

      protected void removeCall(Call c){
          calls.removeElement(c);
      }

      protected void addCall(Call c){
          calls.addElement(c);
      }

      public Customer(String name, int areacode) {
          this.name = name;
          this.areacode = areacode;
      }

      public String toString() {
          return name + "(" + areacode + ")";
      }

      public int getAreacode(){
          return areacode;
      }

      public boolean localTo(Customer other){
          return areacode == other.areacode;
      }

      public Call call(Customer receiver) {
          Call call = new Call(this, receiver);
          addCall(call);
          return call;
      }

      public void pickup(Call call) {
          call.pickup();
          addCall(call);
      }

      public void hangup(Call call) {
          call.hangup(this);
          removeCall(call);
      }

      public void merge(Call call1, Call call2){
          call1.merge(call2);
          removeCall(call2);
      }
  }

The Class Call

Calls are created with a caller and receiver who are customers. If the caller and receiver have the same area code then the call can be established with a Local connection (see below), otherwise a LongDistance connection is required. A call comprises a number of connections between customers. Initially there is only the connection between the caller and receiver but additional connections can be added if calls are merged to form conference calls.

The Class Connection

The class Connection models the physical details of establishing a connection between customers. It does this with a simple state machine (connections are initially PENDING, then COMPLETED and finally DROPPED). Messages are printed to the console so that the state of connections can be observed. Connection is an abstract class with two concrete subclasses: Local and LongDistance.

  abstract class Connection {

      public static final int PENDING = 0;
      public static final int COMPLETE = 1;
      public static final int DROPPED = 2;

      Customer caller, receiver;
      private int state = PENDING;

      Connection(Customer a, Customer b) {
          this.caller = a;
          this.receiver = b;
      }

      public int getState(){
          return state;
      }

      public Customer getCaller() { return caller; }

      public Customer getReceiver() { return receiver; }

      void complete() {
          state = COMPLETE;
          System.out.println("connection completed");
      }

      void drop() {
          state = DROPPED;
          System.out.println("connection dropped");
      }

      public boolean connects(Customer c){
          return (caller == c || receiver == c);
      }

  }

The Class Local

  class Local extends Connection {
      Local(Customer a, Customer b) {
          super(a, b);
          System.out.println("[new local connection from " +
             a + " to " + b + "]");
      }
  }

The Class LongDistance

  class LongDistance extends Connection {
      LongDistance(Customer a, Customer b) {
          super(a, b);
          System.out.println("[new long distance connection from " +
              a + " to " + b + "]");
      }
  }

Compiling and Running the Basic Simulation

The source files for the basic system are listed in the file basic.lst. To build and run the basic system, in a shell window, type these commands:

ajc -argfile telecom/basic.lst
java telecom.BasicSimulation

Timing

The Timing aspect keeps track of total connection time for each Customer by starting and stopping a timer associated with each connection. It uses some helper classes:

The Class Timer

A Timer object simply records the current time when it is started and stopped, and returns their difference when asked for the elapsed time. The aspect TimerLog (below) can be used to cause the start and stop times to be printed to standard output.

  class Timer {
      long startTime, stopTime;

      public void start() {
          startTime = System.currentTimeMillis();
          stopTime = startTime;
      }

      public void stop() {
          stopTime = System.currentTimeMillis();
      }

      public long getTime() {
          return stopTime - startTime;
      }
  }

The Aspect TimerLog

The aspect TimerLog can be included in a build to get the timer to announce when it is started and stopped.

public aspect TimerLog {

    after(Timer t): target(t) && call(* Timer.start())  {
      System.err.println("Timer started: " + t.startTime);
    }

    after(Timer t): target(t) && call(* Timer.stop()) {
      System.err.println("Timer stopped: " + t.stopTime);
    }
}

The Aspect Timing

The aspect Timing introduces attribute totalConnectTime into the class Customer to store the accumulated connection time per Customer. It introduces attribute timer into Connection to associate a timer with each Connection. Two pieces of after advice ensure that the timer is started when a connection is completed and and stopped when it is dropped. The pointcut endTiming is defined so that it can be used by the Billing aspect.

public aspect Timing {

    public long Customer.totalConnectTime = 0;

    public long getTotalConnectTime(Customer cust) {
        return cust.totalConnectTime;
    }
    private Timer Connection.timer = new Timer();
    public Timer getTimer(Connection conn) { return conn.timer; }

    after (Connection c): target(c) && call(void Connection.complete()) {
        getTimer(c).start();
    }

    pointcut endTiming(Connection c): target(c) &&
        call(void Connection.drop());

    after(Connection c): endTiming(c) {
        getTimer(c).stop();
        c.getCaller().totalConnectTime += getTimer(c).getTime();
        c.getReceiver().totalConnectTime += getTimer(c).getTime();
    }
}

Billing

The Billing system adds billing functionality to the telecom application on top of timing.

The Aspect Billing

The aspect Billing introduces attribute payer into Connection to indicate who initiated the call and therefore who is responsible to pay for it. It also introduces method callRate into Connection so that local and long distance calls can be charged differently. The call charge must be calculated after the timer is stopped; the after advice on pointcut Timing.endTiming does this and Billing dominates Timing to make sure that this advice runs after Timing's advice on the same join point. It introduces attribute totalCharge and its associated methods into Customer (to manage the customer's bill information.

public aspect Billing dominates Timing {
    // domination required to get advice on endtiming in the right order

    public static final long LOCAL_RATE = 3;
    public static final long LONG_DISTANCE_RATE = 10;


    public Customer Connection.payer;
    public Customer getPayer(Connection conn) { return conn.payer; }

    after(Customer cust) returning (Connection conn):
        args(cust, ..) && call(Connection+.new(..)) {
        conn.payer = cust;
    }

    public abstract long Connection.callRate();


    public long LongDistance.callRate() { return LONG_DISTANCE_RATE; }
    public long Local.callRate() { return LOCAL_RATE; }


    after(Connection conn): Timing.endTiming(conn) {
        long time = Timing.aspectOf().getTimer(conn).getTime();
        long rate = conn.callRate();
        long cost = rate * time;
        getPayer(conn).addCharge(cost);
    }


    public long Customer.totalCharge = 0;
    public long getTotalCharge(Customer cust) { return cust.totalCharge; }

    public void Customer.addCharge(long charge){
        totalCharge += charge;
    }
}

Accessing the Introduced State

Both the aspects Timing and Billing contain the definition of operations that the rest of the system may want to access. For example, when running the simulation with one or both aspects, we want to find out how much time each customer spent on the telephone and how big their bill is. That information is also stored in the classes, but they are accessed through static methods of the aspects, since the state they refer to is private to the aspect.

Take a look at the file TimingSimulation.java. The most important method of this class is the method report(Customer c), which is used in the method run of the superclass AbstractSimulation. This method is intended to print out the status of the customer, with respect to the Timing feature.

  protected void report(Customer c){
      Timing t = Timing.aspectOf();
      System.out.println(c + " spent " + t.getTotalConnectTime(c));
  }

Compiling and Running

The files timing.lst and billing.lst contain file lists for the timing and billing configurations. To build and run the application with only the timing feature, go to the directory examples and type:

  ajc -argfile telecom/timing.lst
  java telecom.TimingSimulation

To build and run the application with the timing and billing features, go to the directory examples and type:

  ajc -argfile telecom/billing.lst
  java telecom.BillingSimulation

Discussion

There are some explicit dependencies between the aspects Billing and Timing:

  • Billing is declared to dominate Timing so that Billing's after advice runs after that of Timing when they are on the same join point.

  • Billing uses the pointcut Timing.endTiming.

  • Billing needs access to the timer associated with a connection.
